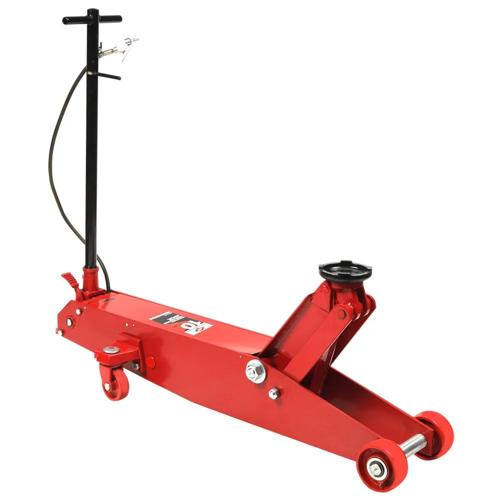

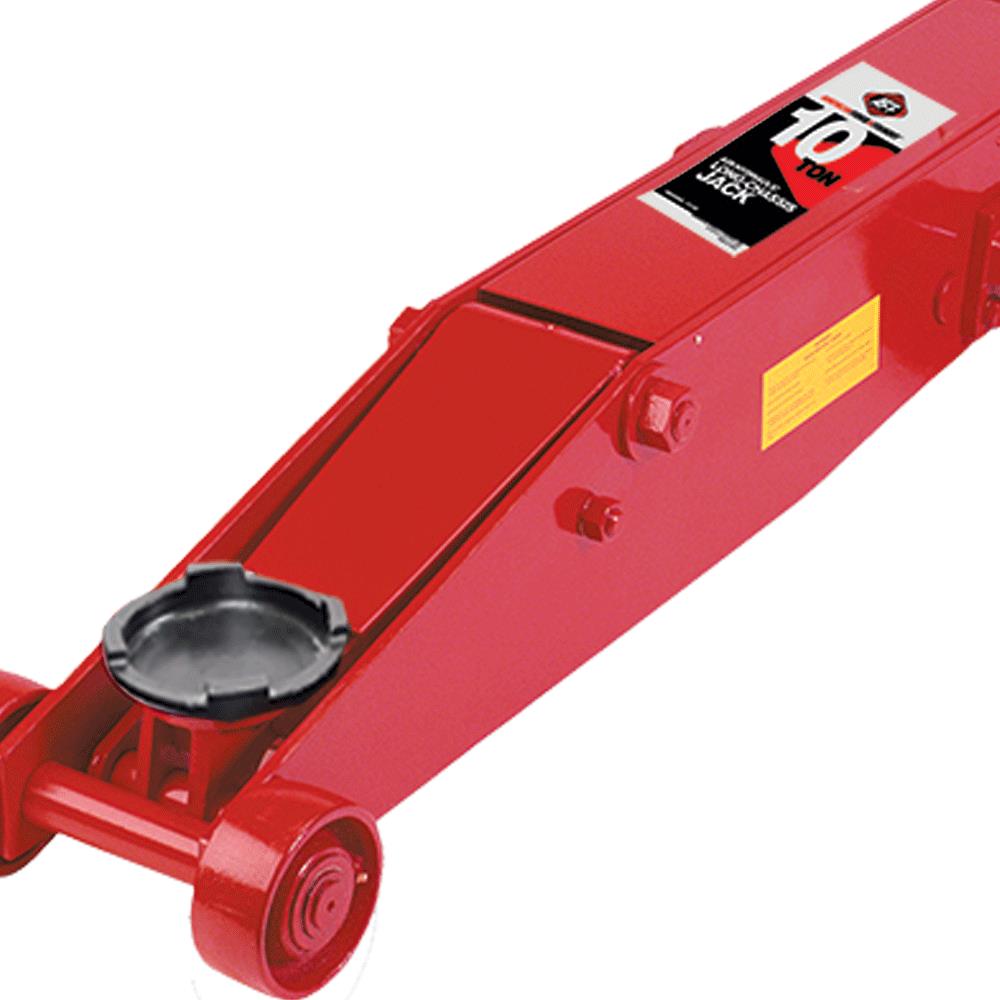

10-Ton Air/Hydraulic Long-Chassis Service Jack

3135

Learn more about AFF

Constructed with a heavy-gauge steel frame for maximum strength and durability, this jack provides access to difficult-to-reach load points and is equipped with a high-speed air motor for fast and efficient lifting.

  • Long chassis body length allows access to difficult-to-reach load points
  • Handle-actuated release valve provides metered control at any desired lowering speed
  • Heavy-duty pumps, rams, and cylinders are precision machined and inspected to ensure long service life and superior performance
  • Constructed with heavy-gauge steel and robust welds to provide maximum strength and durability
  • Foot-operated pump allows hands-free manual operation
  • Technical Specifications
  • Resources

Capacity (lb.)20000
Capacity (T)10
StandardsASME PALD 2003
Chassis Length (in.)60.6
Chassis Width - Front (in.)13.1
Chassis Width - Rear (in.)18.2
Duty LevelHeavy Duty
Handle Length (in.)40
OperationAir/Hydraulic
TypeLong Chassis Jacks
High Height (in.)22.4
Low Height (in.)6.7
Saddle Diameter6.2
Weight (lb.)330
Working Air Pressure90-150
Country Of OriginChina
