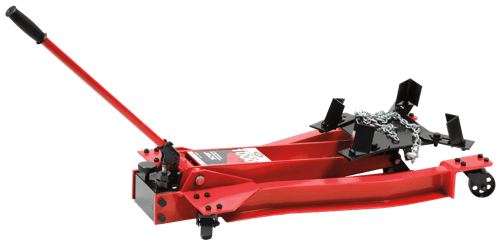

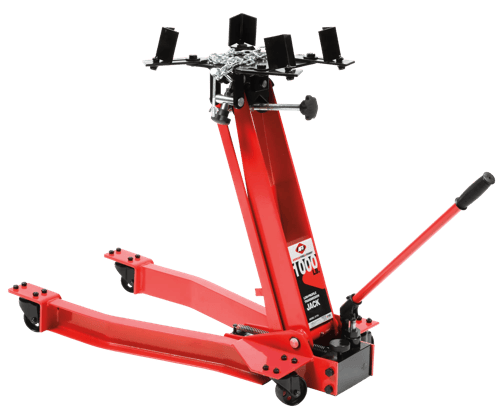

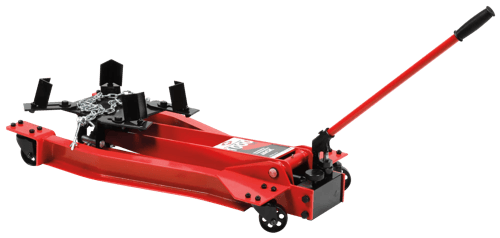

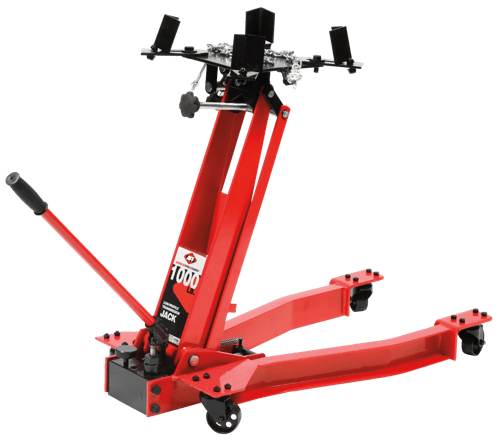

1,000-lb Low Profile Transmission Jack

3171A


Learn more about AFF

The low-profile transmission jacks by AFF are constructed with a high-grade steel and powder coat finish for strength and durability. The wishbone design provides an ultra-low-profile solution when removing or installing heavy-duty diesel truck transmissions.

  • Wishbone design provides superior clearance and is ideal for all low-profile applications

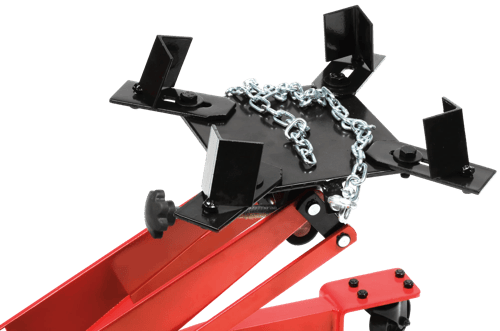

  • Fully adjustable universal saddle with corner brackets and safety chain

  • 4-way tilting head allows convenient positioning for install and removal

  • Long handle pivots 360° around the pump

  • Industrial-grade heavy-duty casters provide smooth travel

  • Technical Specifications
  • Resources

Head Width (in.)7-13
Backward Tilt (deg.)55
Base Length (in.)37.25
Base Width (in.)17.9
Capacity (lb.)1000
Capacity (T)0.5
StandardsASME PASE 2019 Safety Standard
Chassis Length (in.)37.25
Chassis Width - Front (in.)17.9
Chassis Width - Rear (in.)17.9
Duty LevelHeavy Duty
Forward Tilt (deg.)8
Number of Handle Pieces1
OperationManual, Hydraulic
TypeTransmission Jacks
High Height (in.)30.3
Low Height (in.)6.7
Saddle Diameter7.9" x 7.1"
Side Tilt (deg.)6
Warranty 1 Year Limited Commercial Warranty
Weight (kg.)54
Weight (lb.)119
Wheel Diameter Front (in.)3
Wheel Diameter (in.)3
Wheel Diameter Rear (in.)3
Country Of OriginChina
