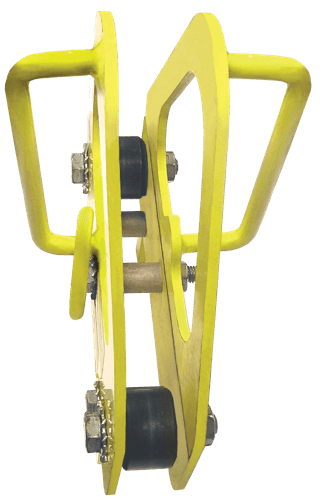

Wide Flange Tank Trolley - 1" to 1-7/8" Flange Width

V82236
Brand: PeakWorks
Learn more about PeakWorks

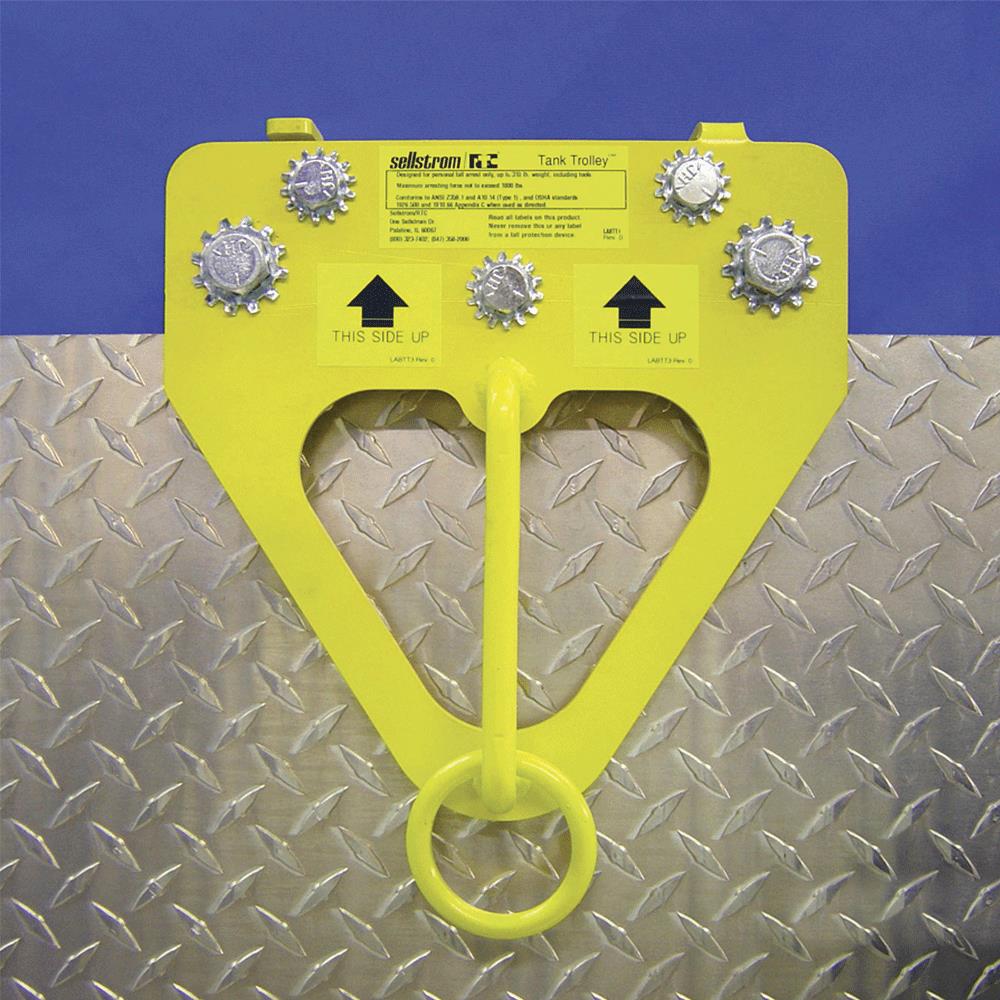

  • This Tank Trolley is designed for use on water and fuel storage tanks and rides on the top lip of the storage tank; Can be used with a standard lanyard or self-retracting lifeline

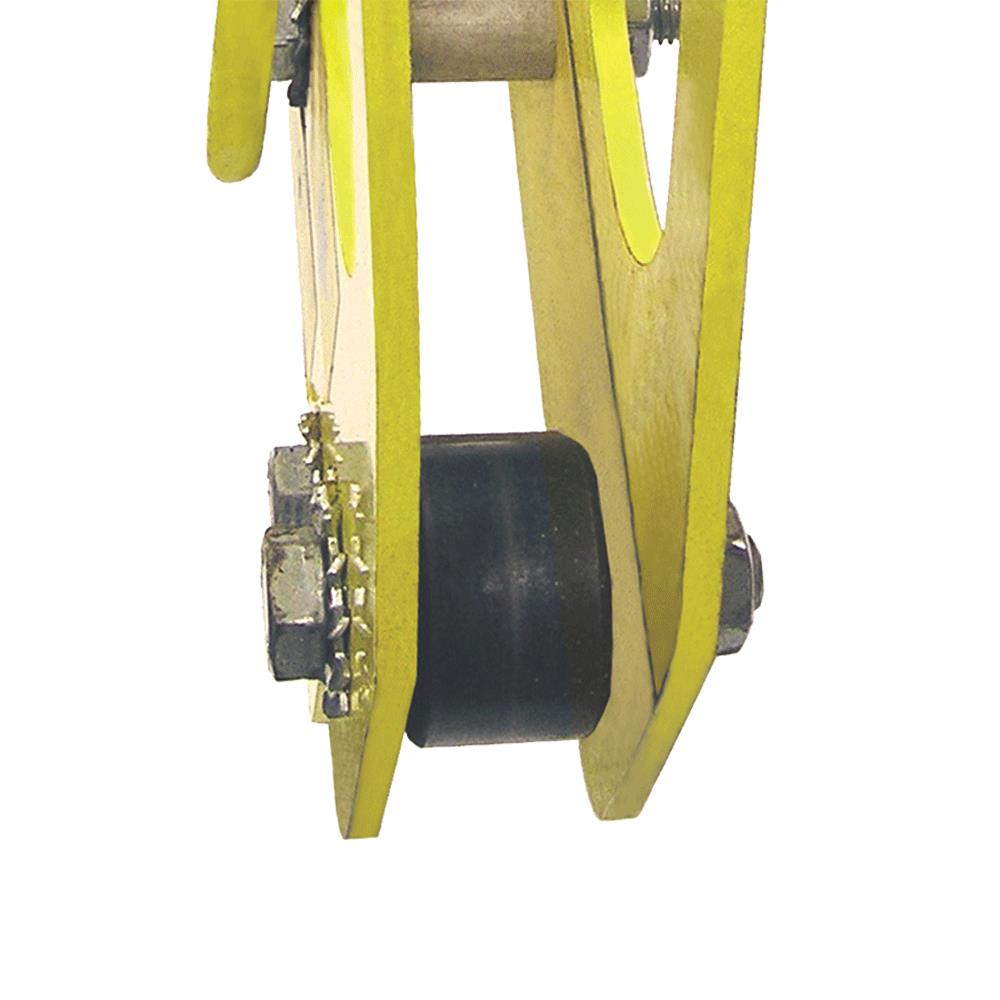

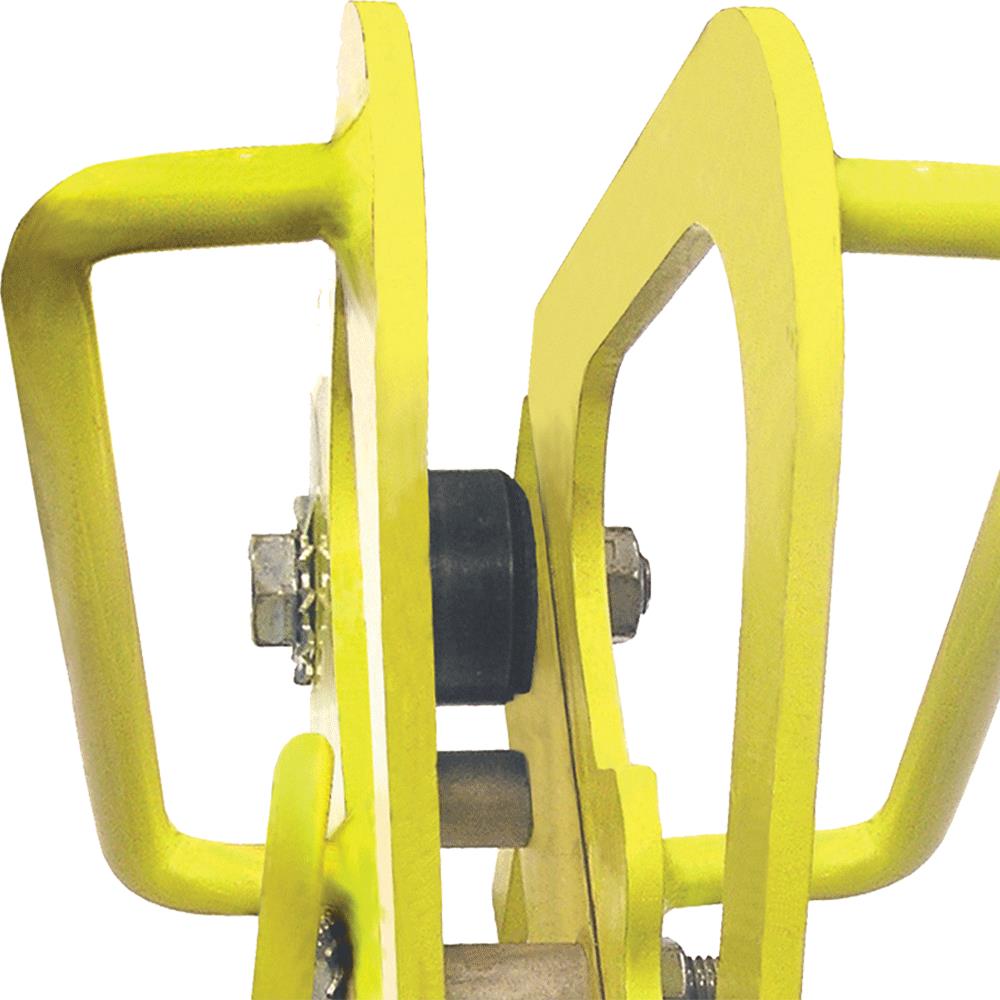

  • Trolley: Rollers 1/4" Steel Powder coated finish with forged steel O-ring attachment with polyurethane composite material
  • Flange Width: Storage tanks with minimum 10' diameter fits 1" to 1 7/8" flange widths
  • Compliance: Materials meets OSHA 1926.5 subpart M 1910.66 app. C ANSI A10.14 Z359.1 standards
  • Technical Specifications
  • Resources

CategoryTemporary
StandardsANSI A10.14, OSHA 1926.5, OSHA 1926.5 subpart M, 1910.66 app. C
End ConfigurationEye
Flange Width (in.)1" to 1-7/8"
Total Weight Capacity (lb.)310 lbs.
Total Weight Capacity (kg.)141 kgs.
Country Of OriginUnited States
