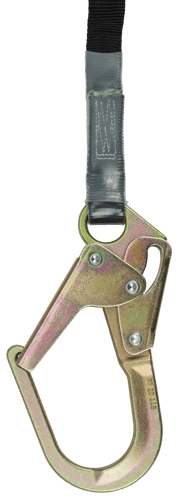

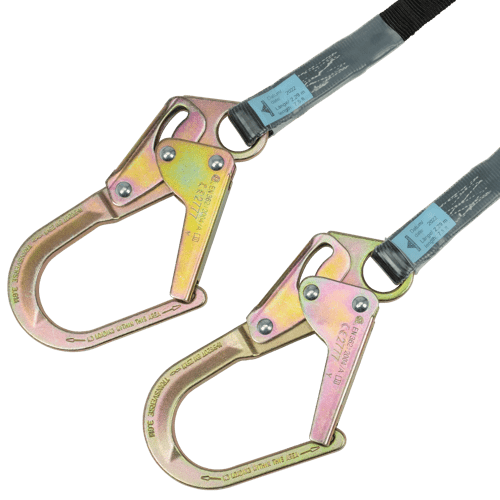

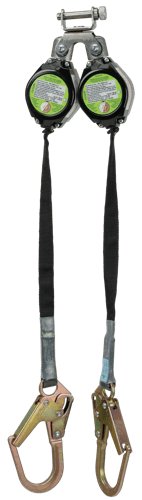

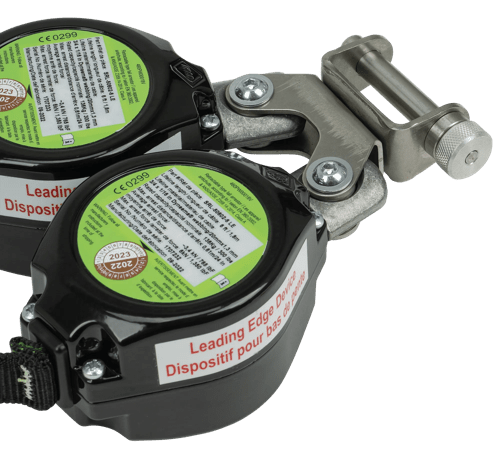

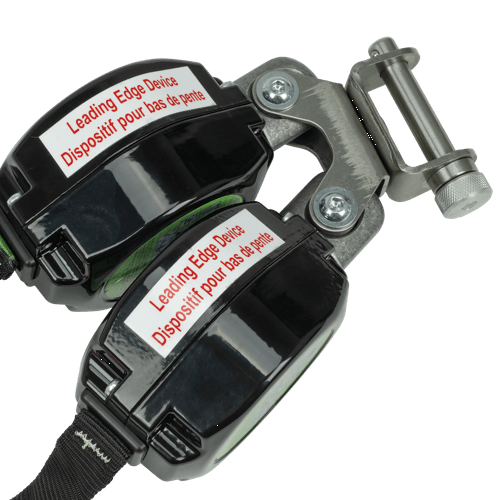

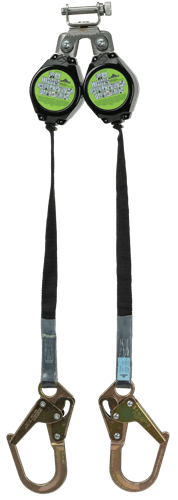

Leading Edge SRD - Twin Leg with Steel Ladder Hook - 7.5'

V84552177-5LE
Brand: PeakWorks













Learn more about PeakWorks

Self-retracting lifeline approved for vertical use and constructed with a lightweight yet durable aluminum housing. A convenient swivel eye improves mobility and double action locking snap hooks ensures a safe and reliable connection. Includes an integrated fall indicator for quick and easy inspection.

  • Provides additional protection when working near a leading edge where sharp or abrasive surfaces may be prevalent
  • Lightweight aluminum housing is durable and built to last
  • Anchor point incorporates a heavy duty and durable swivel eye
  • Features a sewn-in indicator on the lifeline for maximum safety
  • Approved for both vertical and horizontal applications
  • Technical Specifications
  • Resources

Anchor Hook MaterialSteel
Anchor Hook TypeForm Hook
Average Arrest Force678
Body Hook TypeConnection Pin
Capacity (kg.)140
Capacity (lb.)310
StandardsANSI Z359.14-2021 Class 2, OSHA
Class TypeClass 2
ColorBlack/Green
Gate Opening (in.)2
Gate Opening (mm.)51
Housing MaterialAluminum
Leading EdgeYes
Leg TypeTwin
Length (ft.)7.5
Length (m.)2.28
Lifeline MaterialDyneema®
Maximum Total Arrest Distance - Non-Leading Edge application (in.)27
Maximum Total Arrest Distance (m).69
Minimum Fall Clearance - Non-Leading Edge application (ft.)6
Minimum Fall Clearance - Leading Edge application (ft.)13
Minimum Fall Clearance - Leading Edge applications (m)4
Minimum Fall Clearance - Non-Leading Edge application (m)1.83
Minimum set back distance from edge - Leading Edge application (cm)30
Minimum set back distance from edge - Leading Edge application (in.)12
Rescue and Recover - SRL-RNo
Special FeaturesSewn-in Indicator
Webbing/Cable Thickness (in.).07
Webbing/Cable Thickness (mm.)1.7
Webbing/Cable Width (in.)1"
Webbing/Cable Width (mm.)25.4 mm
