Overhead Self-Retracting Device - 170’

V8455331170
Brand: PeakWorks



Learn more about PeakWorks

Non-Leading Edge Class 1 SRD is approved for vertical use only and is third-party certified to ANSI Z359.14-2021 standards. Features aluminum housing for maximum durability with a .21-inch galvanized cable lifeline and comes equipped with a fixed handle anchor attachment point. Devices have a maximum arrest distance of 42 inches and a maximum arrest force of 1800 lbs.

  • Manufactured to exacting specifications using lightweight aluminum or plastic housings for maximum operator comfort

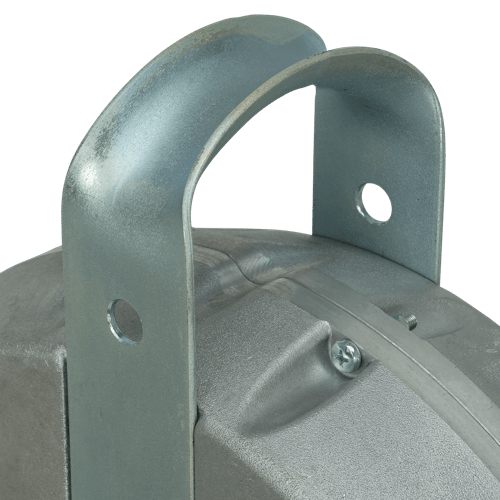

  • Comes equipped with a fixed handle anchor attachment point
  • 310 lbs capacity for 1 worker (combined weight of person tools clothing etc.)
  • Technical Specifications
  • Resources

Anchor Hook MaterialSteel
Anchor Hook TypeSnap Hook
Average Arrest Force667
Body Hook TypeCarabiner
Capacity (kg.)140
Capacity (lb.)310
StandardsANSI Z359.14-2021 Class 1, OSHA
Class TypeClass 1
ColorGrey
Gate Opening (in.).75
Gate Opening (mm.)19
Housing MaterialAluminum
Leading EdgeNo
Leg TypeSingle
Length (ft.)170'
Length (m.)52 m
Lifeline MaterialGalvanized Steel
Maximum Total Arrest Distance - Non-Leading Edge application (in.)42
Maximum Total Arrest Distance (m)1.07
Minimum Fall Clearance - Non-Leading Edge application (ft.)10
Minimum Fall Clearance - Non-Leading Edge application (m)3
Rescue and Recover - SRL-RNo
Webbing/Cable Width (in.)3/16"
Webbing/Cable Width (mm.)5 mm
