1.5-Ton Adjustable Engine Support

583

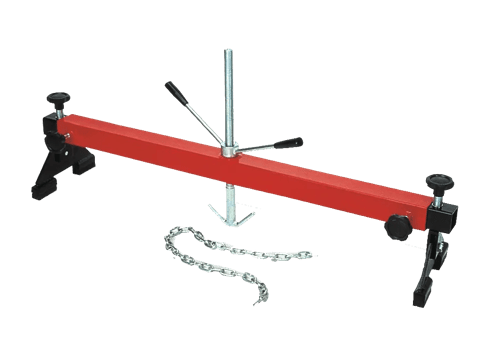

Engine support bar constructed with premium steel material with a powder-coat finish and comes with everything you need to perform work on engines transmission and other heavy-duty applications. The support base allows easy adjustment and provides a stable and strong support for lifting. The 1/2-ton capacity makes this support bar a must-have for all motor repair.

  • Application: This impressive engine support works with the lifting chain to level out the engine weight by adjusting the angle the engine is held at making lifting easier and safer
  • Use: This tool’s tough steel construction resists corrosion and provides overhead engine support for removal of transaxle on FWD vehicles; Adjusts from 26.5" to 49.5" wide with 18.75" screw travel effectively changing an engine’s center-of-gravity
  • Capacity: Ideal for 4 and 6 cylinder FWD vehicles and capable of hoisting even the heaviest of engine blocks; This tool has a 1100 lb. weight capacity and a wide support bracket that can easily be attached to the engine for lifting security
  • Technical Specifications

Capacity (T)1/2 T
Duty LevelHeavy Duty
Max. Width66.1
Min. Width42.5
Shipping Weight (kg.)16
Shipping Weight (lb.)35.3
Special FeaturesAdjustable
Weight (kg.)15
Weight (lb.)33.1
