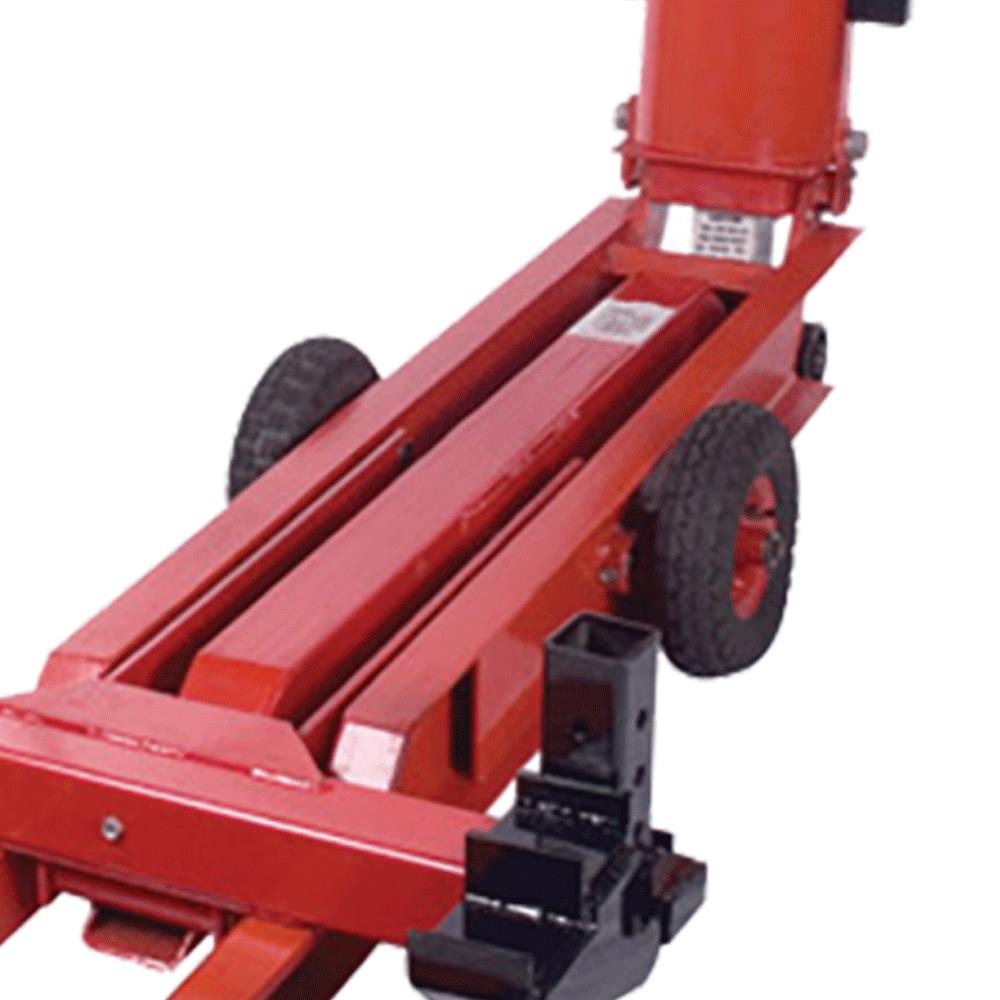

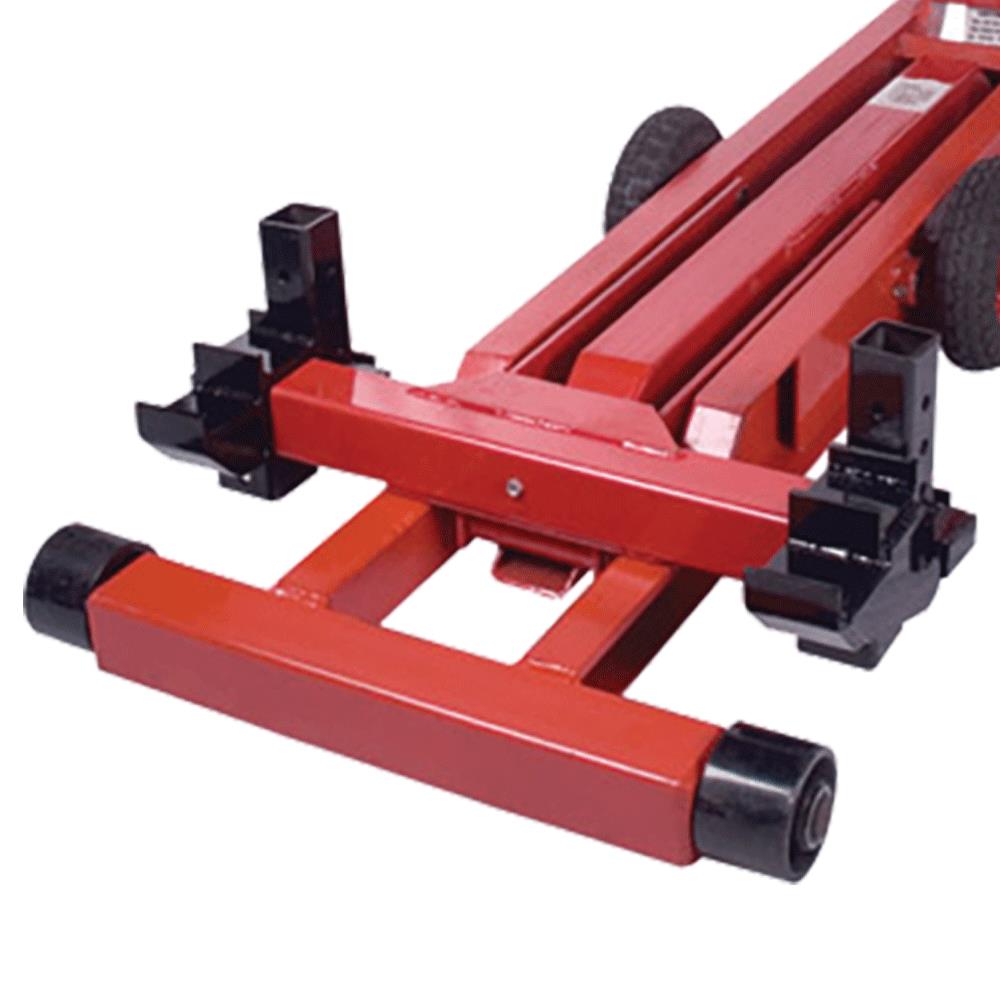

5-1/2-Ton Low Profile/Long Reach Air Lift

3596
Learn more about AFF

AFF® Heavy-Duty Low Profile Air Lifts are designed for quick and efficient lifting of large trucks tractor trailers and heavy construction equipment. Providing extended forward reach all units are 100% air-operated and include integrated locking mechanisms.

  • 48" forward reach provides necessary access to difficult lifting points
  • Performs lift at front axle frame or bumper
  • Steel saddles adjust between 23" and 45" width to accommodate a wide variety of vehicle applications
  • Includes 2 saddle sizes and drop axle adapter for extra versatility
  • Three-way heavy duty air valve for precise raising and lowering
  • Technical Specifications

Capacity (lb.)11000
Capacity (T)5.5
StandardsASME 2014
Chassis Length (in.)84
Chassis Width - Front (in.)36
Duty LevelHeavy Duty
Handle Length (in.)9.4
OperationAir/Hydraulic
TypeAir Lift Jacks
High Height (in.)88.2
Low Height (in.)9.5
Ram Lift (in.) - Stage 134.6
Saddle Diameter7"x3"
Saddle Spread (in.)23-45
Weight (lb.)730
Working Air Pressure160PSI
Country Of OriginChina
