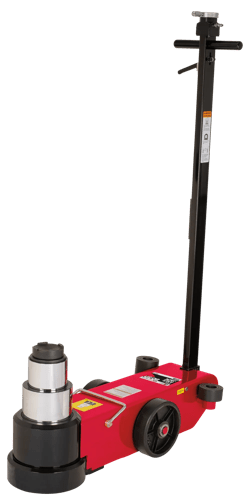

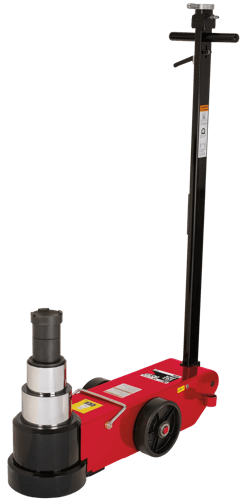

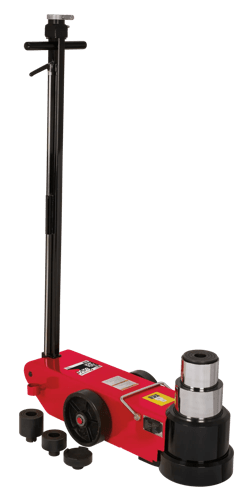

80/50-Ton 2-Stage Air/Hydraulic Axle Jack

549SD
Learn more about AFF

The AFF® Super Duty 2- and 3-stage axle jacks cover a wide variety of demands from the trucking agriculture fleet and military sectors. Extra-long handles provide easy under-vehicle access. Each jack is designed for applications where extra capacity or height is required.

  • Descent metering valve allows for a safe and controlled lowering of the load
  • Extra-long handle provides easy positioning under lift points

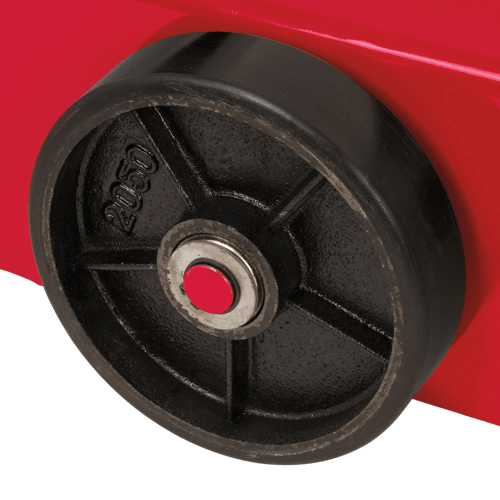

  • Industrial style casters are ideal for shop or roadside environments

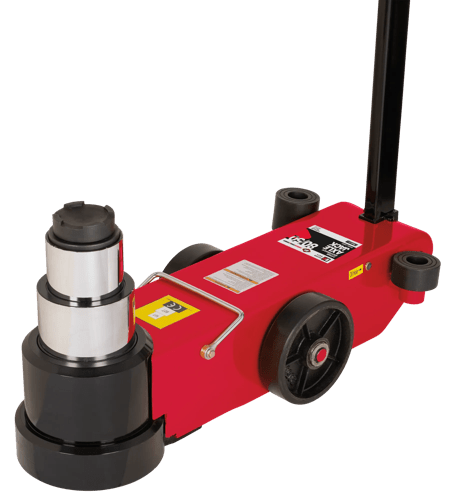

  • Double polished chrome pistons provide tighter tolerances and greater hydraulic seal
  • Safety overload system provides added operator safety
  • Technical Specifications

Capacity (T) - Stage 180
Capacity (T) - Stage 250
Duty LevelSuper Heavy Duty
Handle Length (in.)54
High Height (in.) - Stage 113.39"/19.14"
High Height (in.) - Stage 217.32"/23.07"
OperationAir/Hydraulic
TypeAxle Jacks
Low Height (in.)9.06
Ram Lift (in.) - Stage 13.03"
Ram Lift (in.) - Stage 25.79"

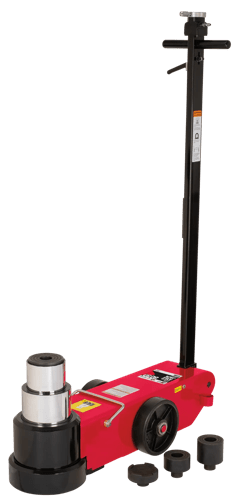

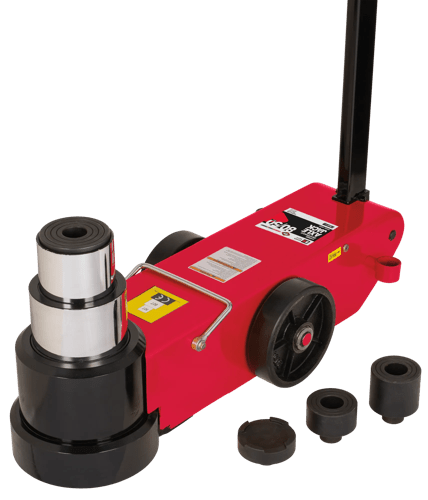

Extension (in.)1.75" & 3"
Weight (kg.)240
Working Air Pressure116/174
Country Of OriginChina
