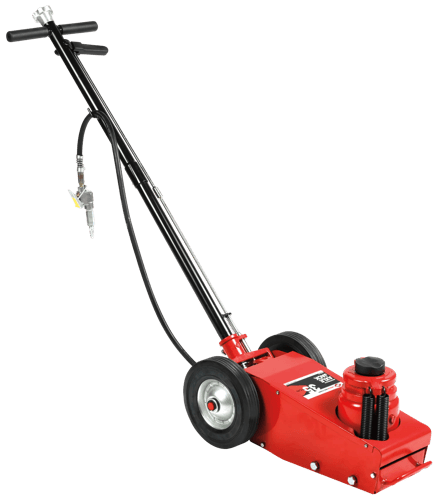

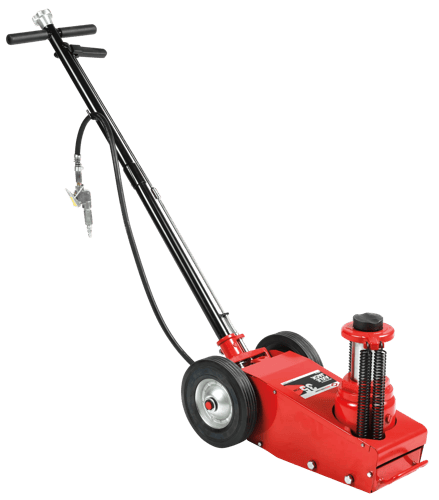

35-Ton Air/Hydraulic Axle Jack

536
Learn more about AFF

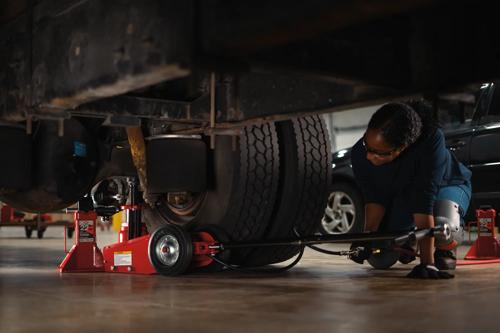

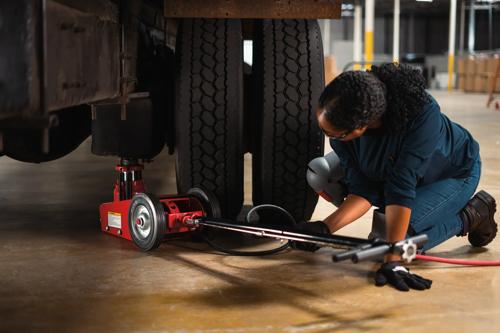

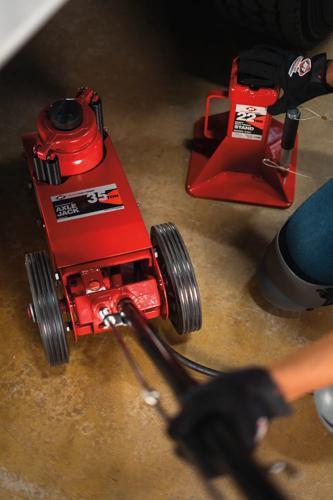

The AFF single-stage axle jacks feature a specially engineered air motor for easy lifting and a self-retracting spring return. Its heavy-duty design is ideal for truck and trailer shops, rail and bus work, and roadside service calls.

  • Specially engineered high-speed air motor delivers fast and efficient operation

  • Compact and low-profile design allows maximum access and easily fits between wheels of tandem axle vehicles

  • Fully welded hydraulic pump and cylinder construction provide increased strength and leak-free operation

  • Large all-terrain rubber wheels provide effortless travel in the shop or on the road

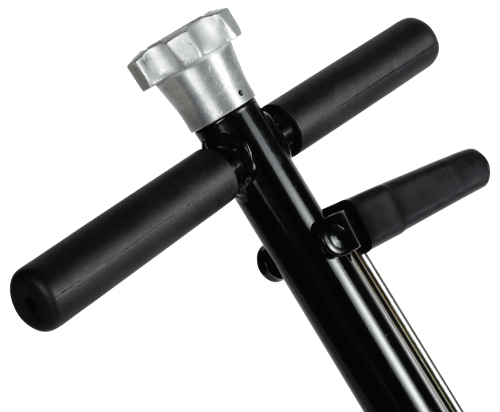

  • Extra-long handle locks in 3 different positions from 90-180 degrees for easy positioning

  • Technical Specifications
  • Resources

Capacity (T)35
Chassis Length (in.)24.3
Chassis Width - Front (in.)8
Chassis Width - Rear (in.)12.8
Duty LevelHeavy Duty
Handle Length (in.)42
OperationAir/Hydraulic
TypeAxle Jacks
High Height (in.)2.75
Low Height (in.)10.7
Ram Lift (in.) - Stage 15.1
Hydraulic Repair Kit536-KRK
Saddle Diameter1.9
Extension (in.)4.92
Warranty 1 Year Limited Commercial Warranty
Weight (lb.)116
Working Air Pressure90-150 PSI
Country Of OriginChina
