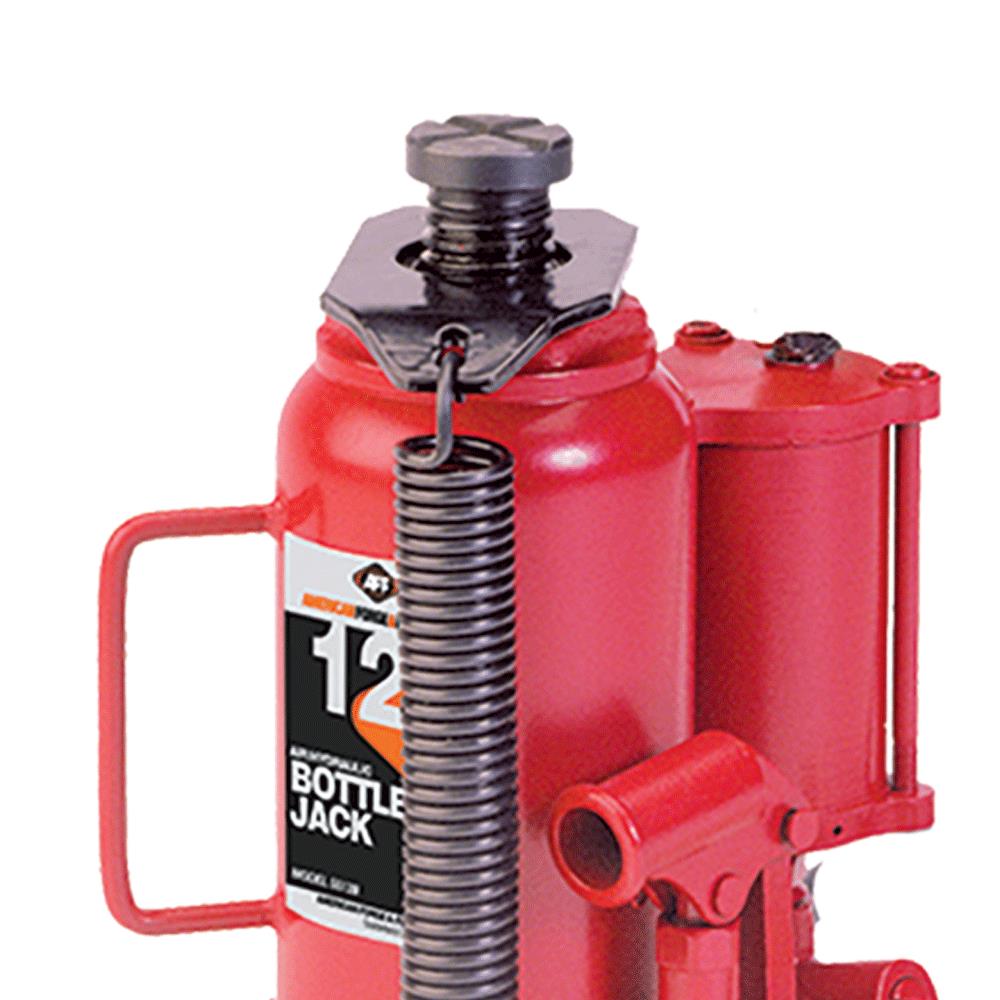

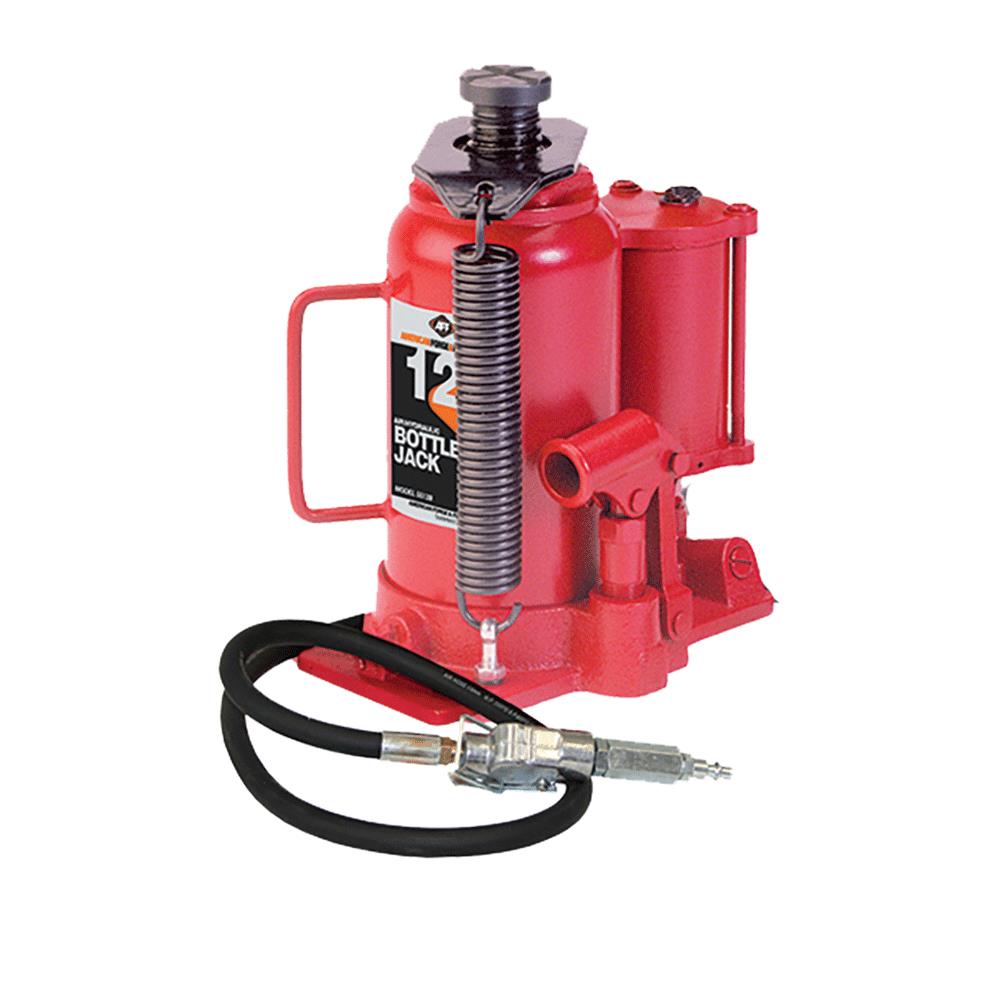

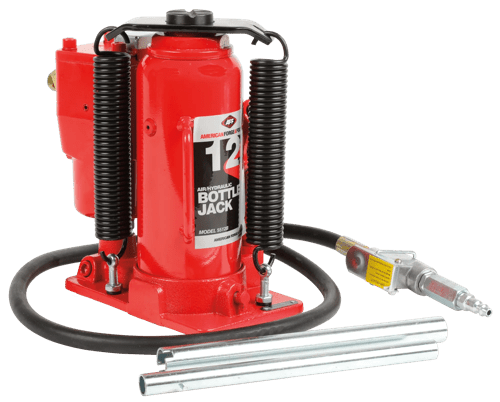

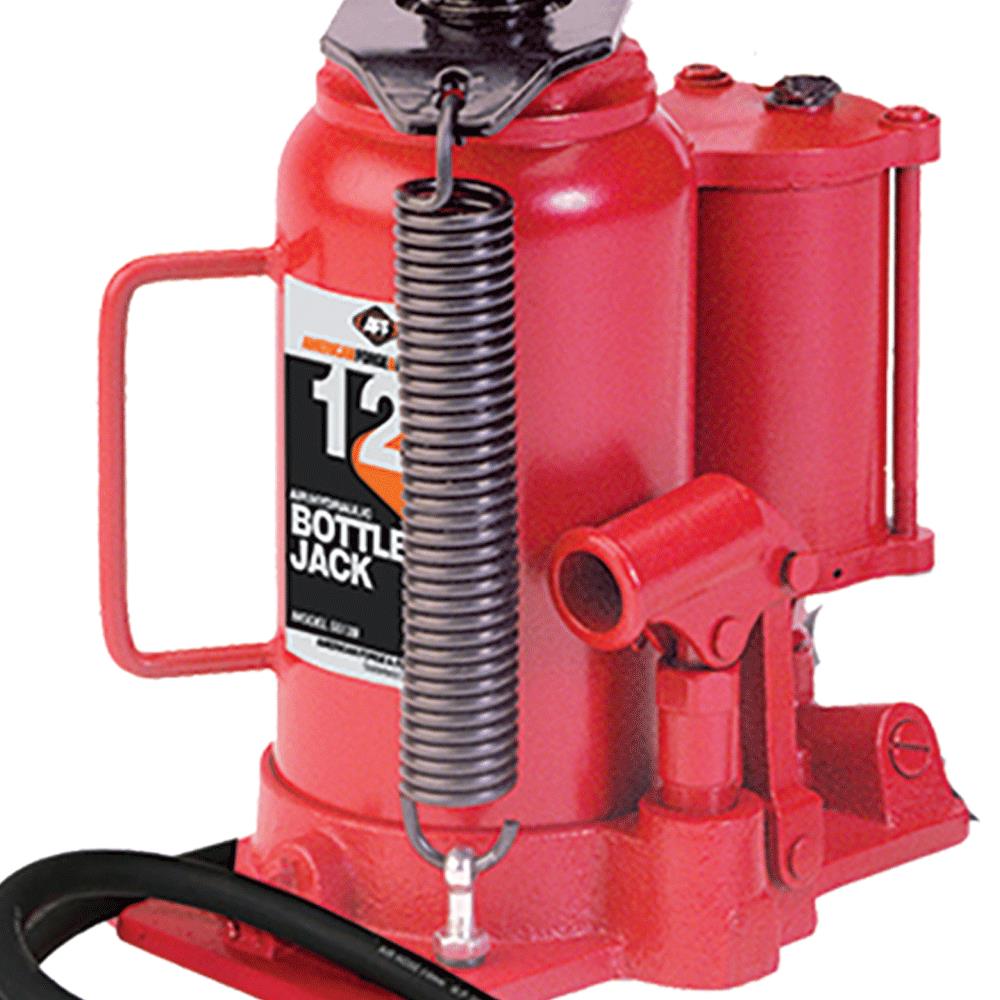

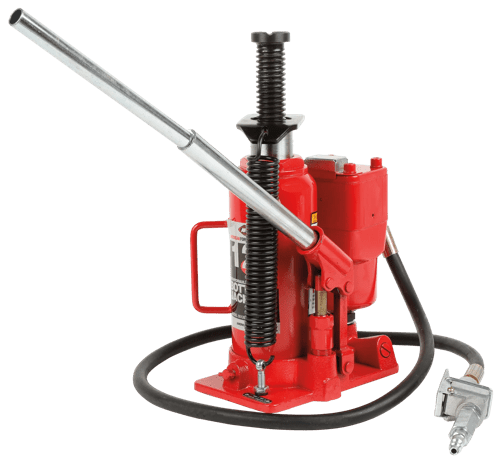

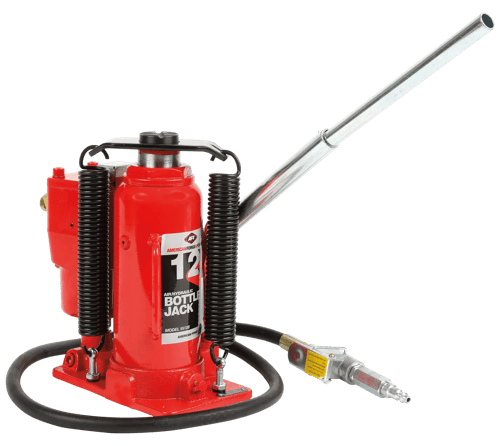

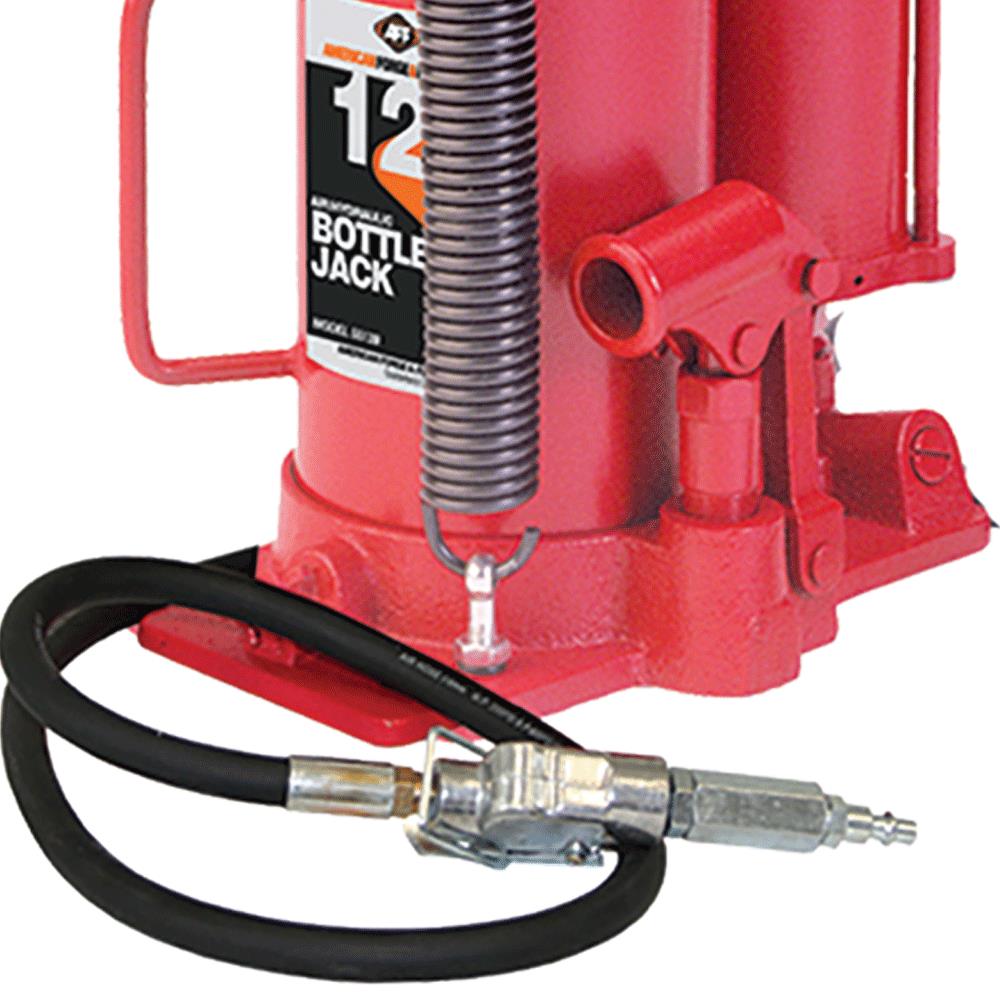

12-Ton Air-Assist Bottle Jack

5512B

Learn more about AFF

For use in heavy-duty trucks farm equipment construction mining equipment and other heavy-duty lifting applications.

  • Fast and efficient air pump reduces lifting time and has a built-in relief mechanism which prevents accidental overload
  • Unique design allows for manual operation when air is not available
  • Centered pumps and rams with heat-treated pistons provide balance and easy positioning
  • Saddles are made of machine-hardened steel
  • Longer wear life due to internally machined oil passages smooth bearing surfaces and close tolerances
  • Technical Specifications

Capacity (lb.)24,000
Capacity (T)12
StandardsASME PALD 2009
Dimensions (in.)10.25" x 10.5" x 6.5"
Duty LevelHeavy Duty
Number of Handle Pieces2
OperationAir/Hydraulic
TypeBottle Jacks
High Height (in.)19-1/2"
Low Height (in.)10-1/4"
Hydraulic Repair Kit5512BKRK
Extension (in.)2-1/2"
Weight (kg.)13 kg
Weight (lb.)29 lb
Working Air Pressure110 - 120PSI
Country Of OriginChina
