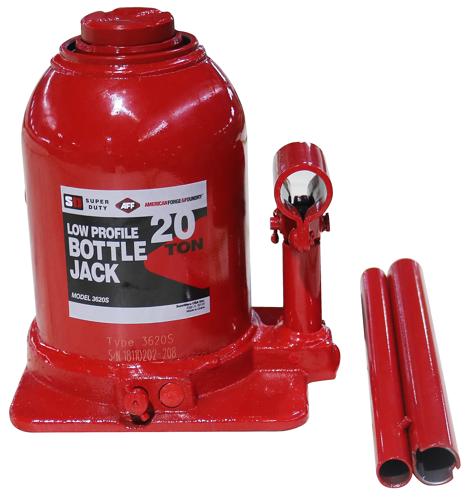

20–Ton Super Duty Manual Bottle Jack– Low–Profile

3620S


Learn more about AFF

The AFF® Super-Duty Manual Hydraulic Bottle Jacks are made to power through the toughest heavy truck heavy equipment and oil field jobs. Jacks feature precision-manufactured internals forged bases and oil bypass valves to prevent overloading. Each jack is heat-treated in critical stress areas to ensure long life and performance.

  • Constructed of high-grade steel and built to exacting standards
  • Fully welded cylinder for maximum strength
  • Forged base for extra durability and leak-free operation
  • Oil by-pass system provides overload protection
  • Widely used in heavy-duty truck agriculture mining and oil field applications
  • Technical Specifications

Base Length (in.)7.60
Base Width (in.)5.67
Capacity (lb.)40000
Capacity (T)20
StandardsASME PASE 2019 Safety Standard
Dimensions (in.)6.4x5.6
Duty LevelSuper Heavy Duty
Handle Length (in.)16.5
Number of Handle Pieces2
OperationHydraulic
TypeBottle Jacks
High Height (in.)13.8
Low Height (in.)7.5
Ram Lift (in.) - Stage 13.9
Saddle Diameter1.5
Extension (in.)2.36
StyleLow Profile
Weight (lb.)20
Country Of OriginChina
