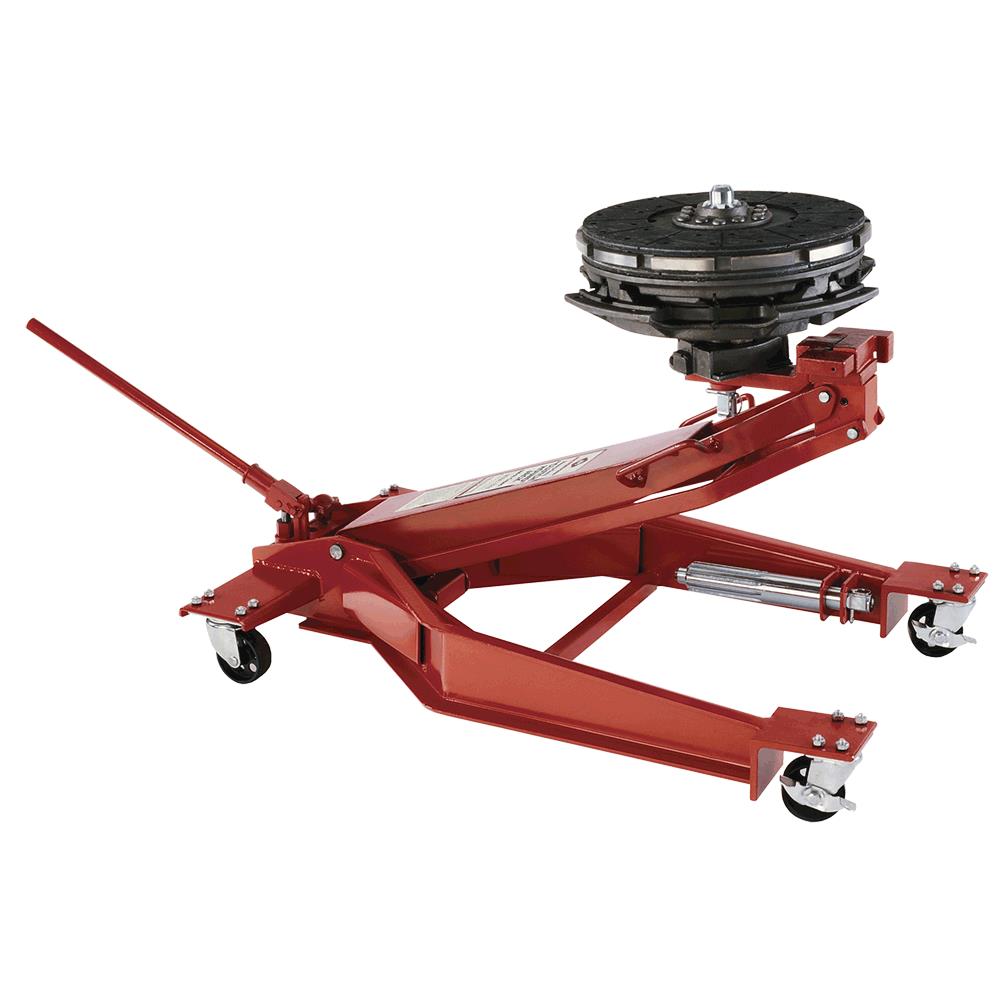

500-lb Clutch Jack

3700
Learn more about AFF

The AFF® Heavy-Duty Clutch Jack is designed to help the mechanic install and remove heavy truck clutches. It is an ideal solution for the confined drive train work area providing a "one-man" operation to remove install and transport heavy-duty truck clutches.

  • Clutch quickly flips from vertical position to horizontal position for easy assembly
  • Pump handle rotates 360 degrees to allow operation even in the tightest working areas
  • Versatile open leg design allows convenient placement close to the work area
  • Swivel casters (2 locking) provide easy maneuverability across the shop floor
  • Includes 2 splined alignment shafts
  • Technical Specifications

Capacity (lb.)500 lb
Capacity (T).25
Chassis Length (in.)38.4
Chassis Width - Front (in.)23.5
Chassis Width - Rear (in.)21.6
Duty LevelHeavy Duty
Handle Length (in.)18
Number of Handle Pieces1
OperationHydraulic
TypeClutch Jacks
High Height (in.)39"
Low Height (in.)13"
Weight (lb.)134
Country Of OriginChina
