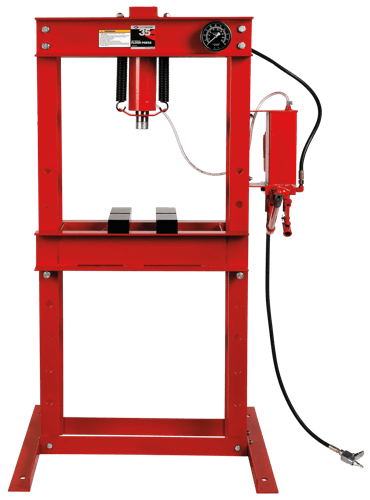

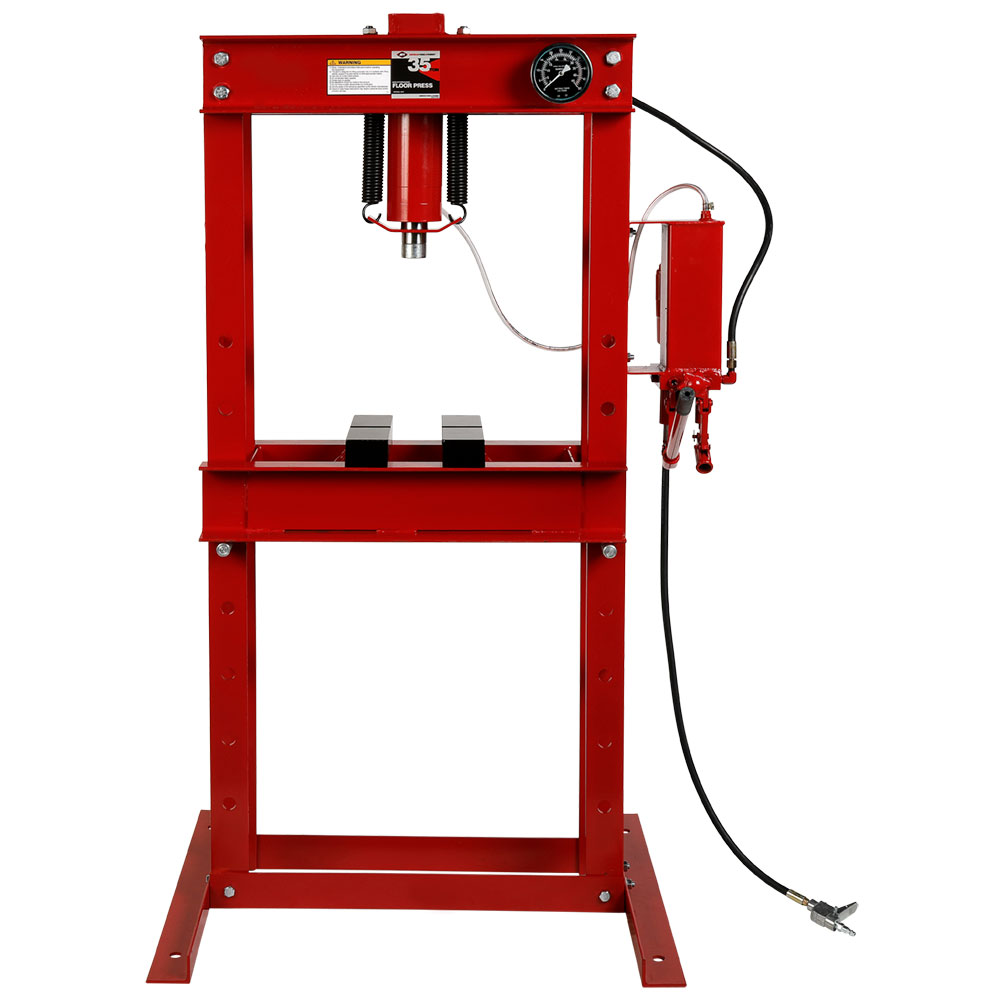

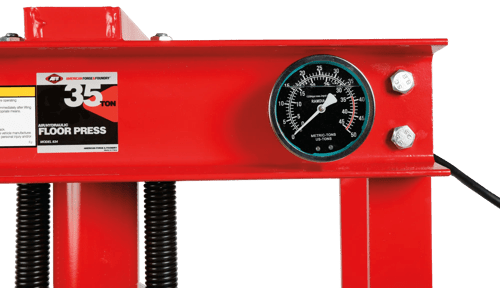

35-Ton Floor Press

834
Learn more about AFF

AFF Heavy-Duty Shop Presses are ideal for straightening bending and removing gears bearings and bushings. The industrial-grade construction provides strength and durability that you won't find with other standard-duty shop presses.

  • Made with rugged structural steel frame for maximum durability and long service life
  • Fully welded design provides superior strength for the toughest pressing jobs

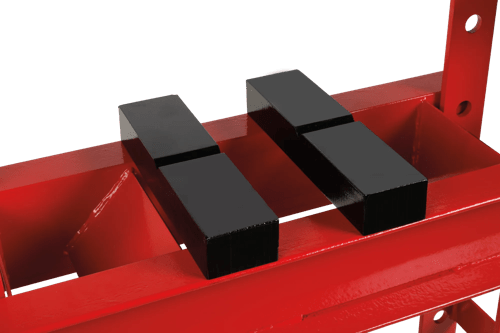

  • Features multiple bed adjustments for a variety of applications

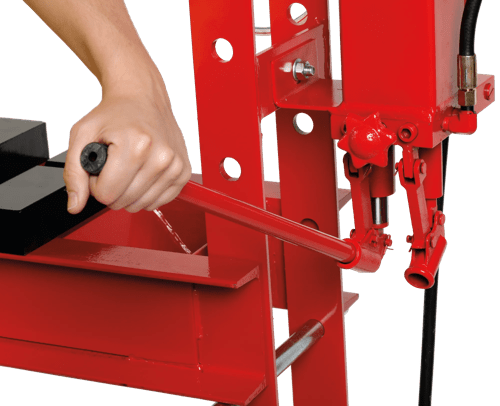

  • Provides effortless operation with sturdy precision
  • Ideal for the removal and installation of gears bushings and bearings as well as metal bending straightening and flattening applications
  • Technical Specifications

Base Width (in.)30"
Bed Rail Opening (in.)7.5"
Capacity (lb.)70000
Capacity (T)35
Height (in.)66"
Post Opening (in.)24"
Ram Stroke (in.)7"
Space Interval (in.)4-1/2"

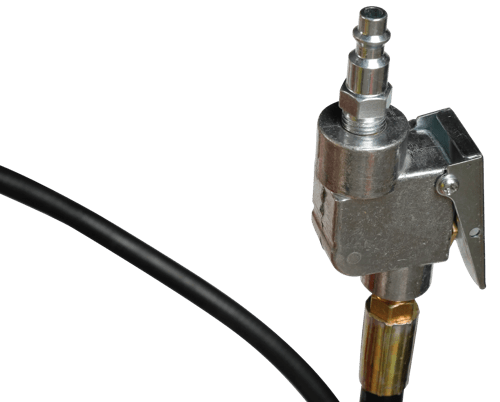

Working Air Pressure (PSI)90-150
Country Of OriginChina
