4-Ton Super-Duty Body and Frame Repair Kit

816SD












Learn more about AFF

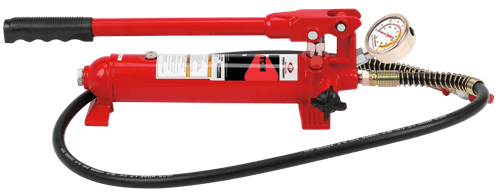

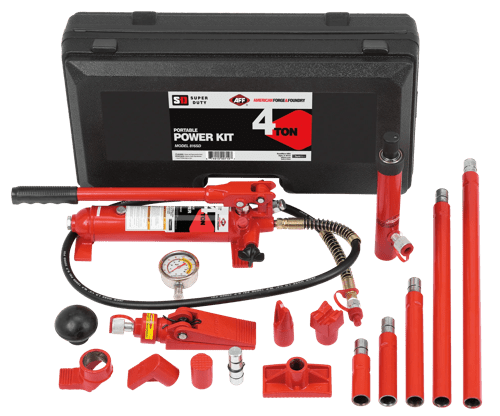

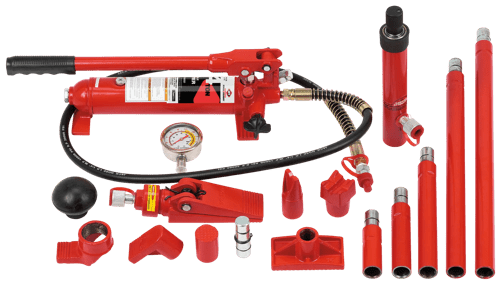

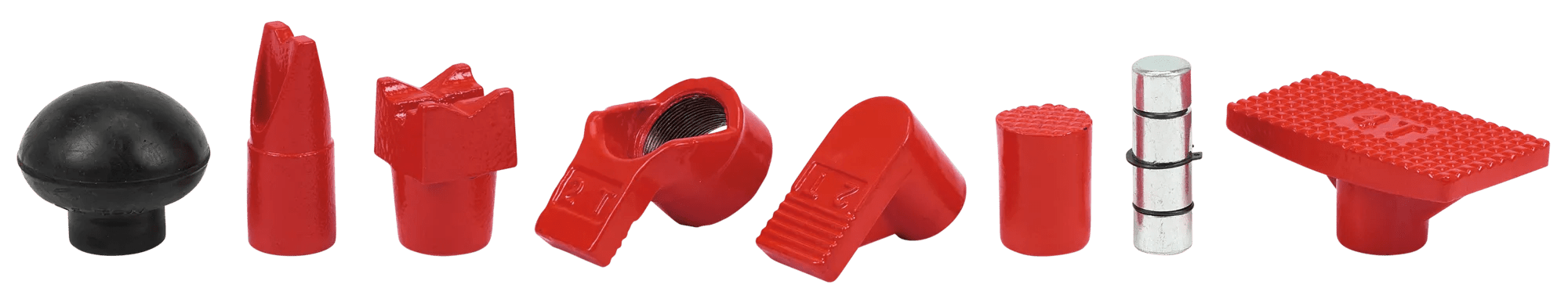

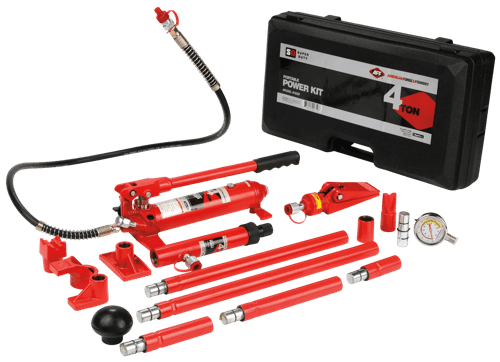

Body and frame repair kits are commonly used in fleet and vehicle body repair tasks such as bumper damage and body panel work. Sets include a hydraulic hand pump cylinder and a popular assortment of attachments.

  • Ideal for bumper damage body panel and other automotive and heavy duty applications
  • Universal design allows use with AFF brand and other style body and frame repair kits

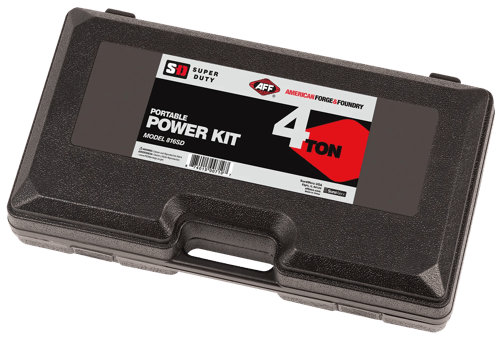

  • Comes packaged in a blow mold or metal case
  • Technical Specifications
  • Resources

AttributesAuto Air Bleed Pump, Double Braided Hydraulic Hose
Capacity (T)4
StandardsASME/PASE 2019
Closed Height (in.)10.5
Compatible withOther Branded Kit Components
Diameter - Inner Ram (in.)1.18
Duty LevelSuper Duty
Effective Area (in²)1.09
Extension Tubes Length (mm/in.)32.28mm / 1.3", 50.39mm / 2", 85.03mm / 3.3", 165.35mm / 6.5", 194.88mm / 7.7"
Hose Length (ft.)5

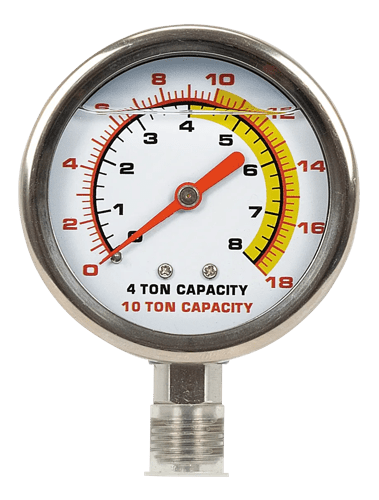

IncludesHeavy Duty Blow Mould Case, Pressure Gauge
Max. Operating Pressure (PSI)8043
Net Weight (lb.)40.79
Oil Output Port Thread3/8-18 NPT
Pump Capacity (T)4
Ram Capacity (T)4
Ram Extended Height (in.)15.24
Shipping weight (lb.)42
Country Of OriginChina
