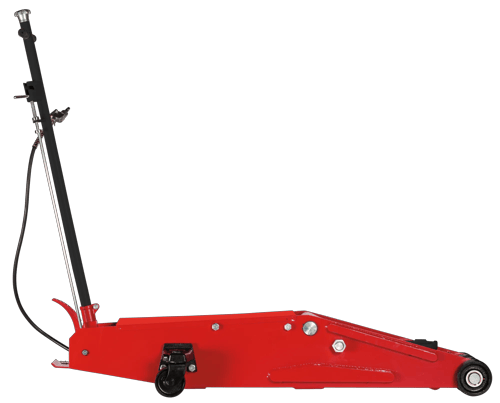

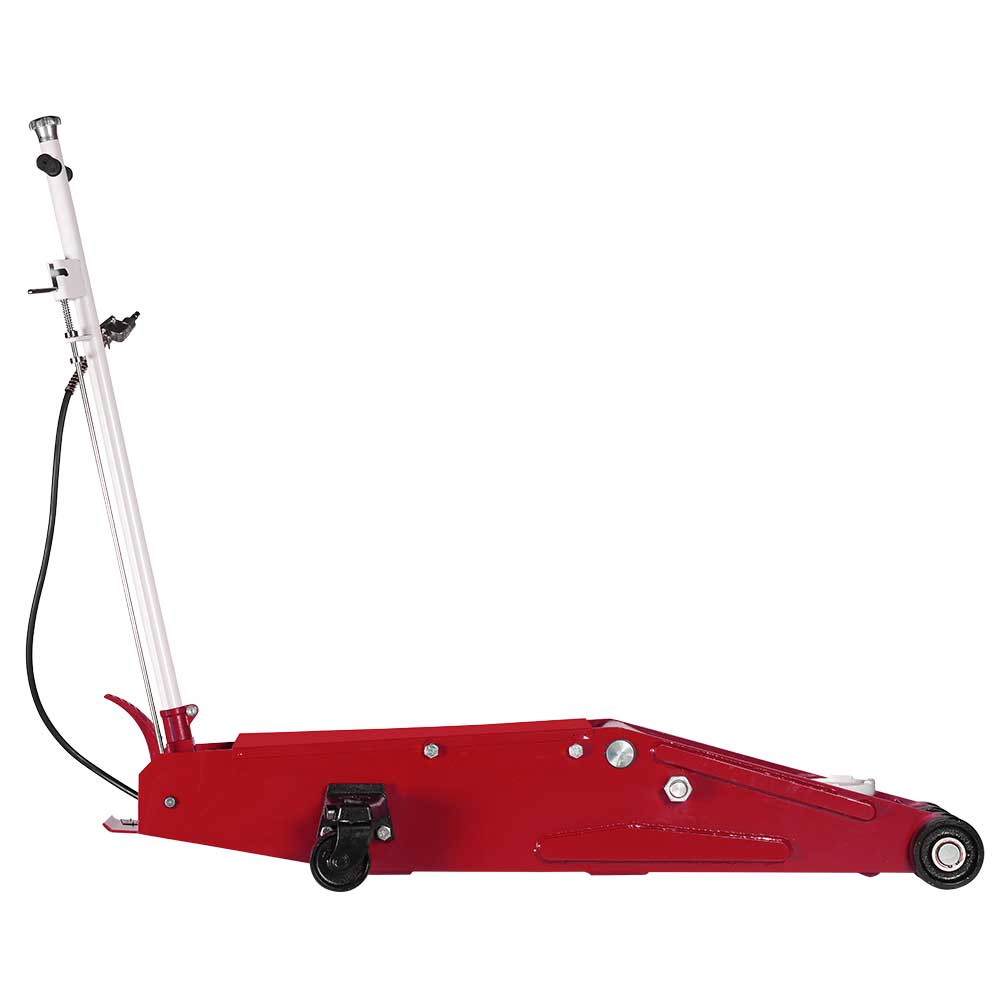

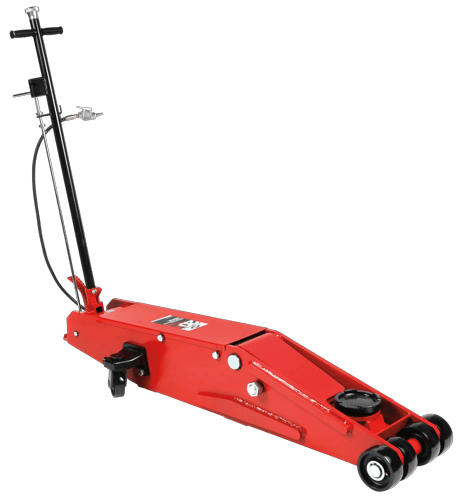

20-Ton Air/Hydraulic Long-Chassis Service Jack

3225

Learn more about AFF

Constructed with a heavy-gauge steel frame for maximum strength and durability, this jack provides access to difficult-to-reach load points and is equipped with a high-speed air motor for fast and efficient lifting.

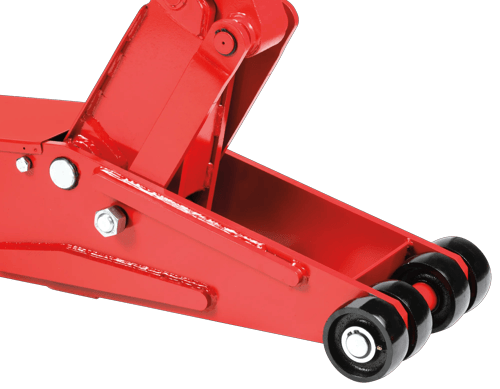

  • Long chassis body length allows access to difficult-to-reach load points
  • Handle-actuated release valve provides metered control at any desired lowering speed
  • Heavy-duty pumps, rams, and cylinders are precision machined and inspected to ensure long service life and superior performance
  • Constructed with heavy-gauge steel and robust welds to provide maximum strength and durability

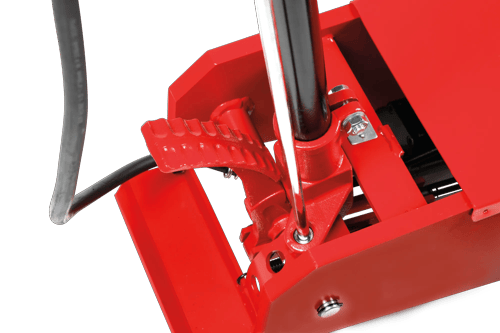

  • Foot-operated pump allows hands-free manual operation
  • Technical Specifications
  • Resources

Capacity (lb.)40000
Capacity (T)20
StandardsASME PASE 2019 Safety Standard
Chassis Length (in.)63
Chassis Width - Front (in.)13.6
Chassis Width - Rear (in.)9
Duty LevelHeavy Duty
Handle Length (in.)46
OperationAir/Hydraulic
TypeLong Chassis Jacks
High Height (in.)24.4
Low Height (in.)7.2
Saddle Diameter5.7
Weight (lb.)531
Working Air Pressure101 - 145 PSI
Country Of OriginChina
