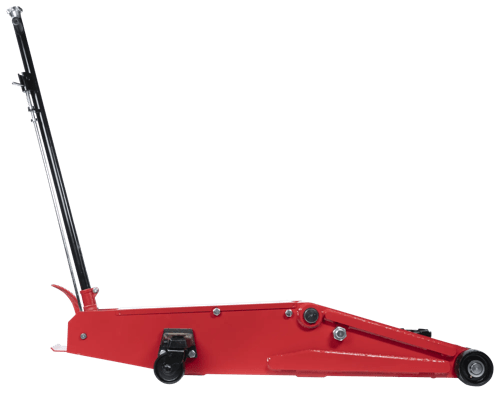

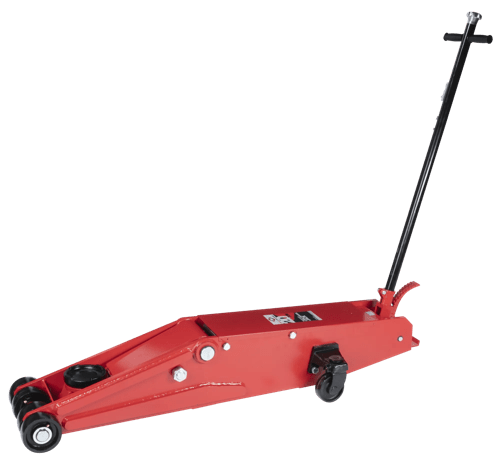

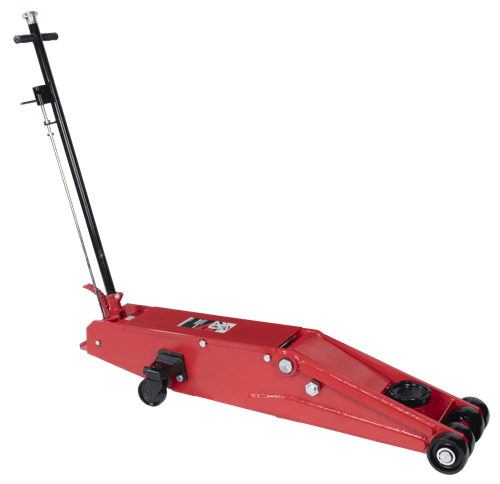

20-Ton Long-Chassis Manual Hydraulic Service Jack

3220

Learn more about AFF

Constructed with a heavy-gauge steel frame for maximum strength and durability this jack provides access to difficult-to-reach load points and is equipped with a foot-operated pump for fast and efficient lifting.

  • Long chassis body length allows access to difficult to reach load points
  • Constructed with heavy-gauge steel and robust welds to provide maximum strength and durability
  • Heavy-duty pumps rams and cylinders are precision machined and inspected to ensure long service life and superior performance
  • Foot-operated pump allows quick and easy hands-free operation

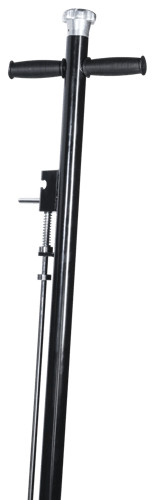

  • 3-position handle lever provides maximum versatility in under-vehicle positioning
  • Technical Specifications

Capacity (lb.)40000
Capacity (T)20
StandardsASME PASE 2019 Safety Standard
Chassis Length (in.)63
Chassis Width - Front (in.)13.6
Chassis Width - Rear (in.)9
Handle Length (in.)46
OperationManual, Hydraulic
TypeLong Chassis Jacks
High Height (in.)24.4
Low Height (in.)7.2

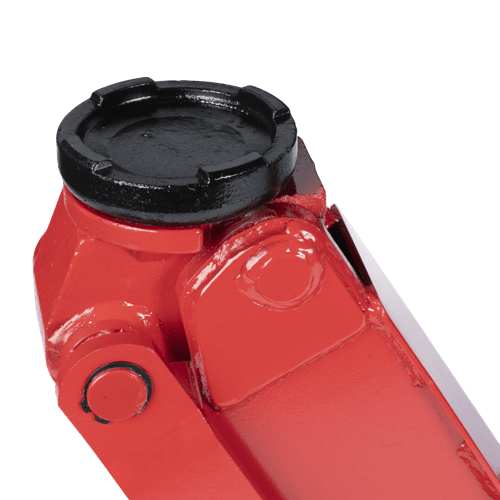

Saddle Diameter5.7
Weight (lb.)527
Working Air Pressure90-150
Country Of OriginChina
