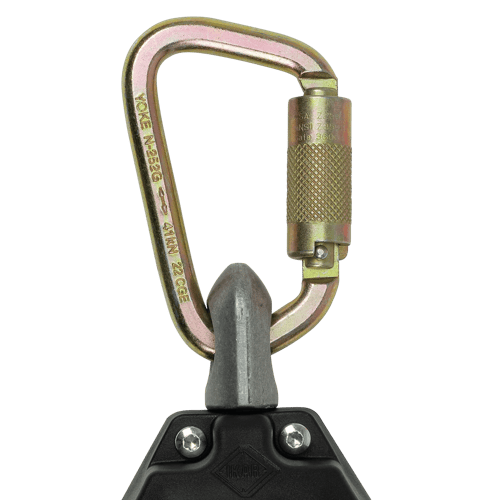

Leading Edge SRD - Single Leg Web with Snap - 10'

V845423110LE
Brand: PeakWorks
Learn more about PeakWorks

Self-retracting lifeline approved for vertical use and constructed with a lightweight yet durable aluminum housing. A convenient swivel eye improves mobility and double action locking snap hooks ensures a safe and reliable connection. Includes an integrated fall indicator for quick and easy inspection.

  • Provides additional protection when working near a leading edge where sharp or abrasive surfaces may be prevalent
  • Lightweight aluminum housing is durable and built to last
  • Anchor point incorporates a heavy duty and durable swivel eye

  • Features a sewn-in indicator on the lifeline for maximum safety

  • Approved for both vertical and horizontal applications
  • Technical Specifications
  • Resources

Anchor Hook MaterialSteel
Anchor Hook TypeSnap Hook
Average Arrest Force521 lbf
Body Hook TypeCarabiner
Capacity (kg.)136
Capacity (lb.)310
StandardsANSI Z359.14-2021 Class 2, LE certified
Class TypeClass 2
ColorBlack
Gate Opening (in.)0.75
Gate Opening (mm.)19
Housing MaterialAluminum
Leading EdgeYes
Leg TypeSingle
Length (ft.)10
Length (m.)3.05
Lifeline MaterialDyneema®
Maximum Total Arrest Distance - Non-Leading Edge application (in.)42
Maximum Total Arrest Distance (m)1.07
Minimum Fall Clearance - Non-Leading Edge application (ft.)6
Minimum Fall Clearance - Leading Edge application (ft.)13
Minimum Fall Clearance - Leading Edge applications (m)3.9
Minimum Fall Clearance - Non-Leading Edge application (m)1.8
Minimum set back distance from edge - Leading Edge application (cm)40cm
Minimum set back distance from edge - Leading Edge application (in.)16 in
Rescue and Recover - SRL-RNo
Special FeaturesSewn-in Indicator
Webbing/Cable Thickness (in.)0.07"
Webbing/Cable Thickness (mm.)1.7 mm
Webbing/Cable Width (in.)1.0"
Webbing/Cable Width (mm.)25.4 mm
Country Of OriginGermany
