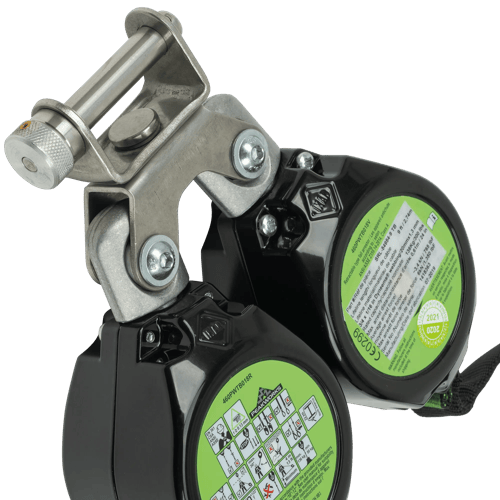

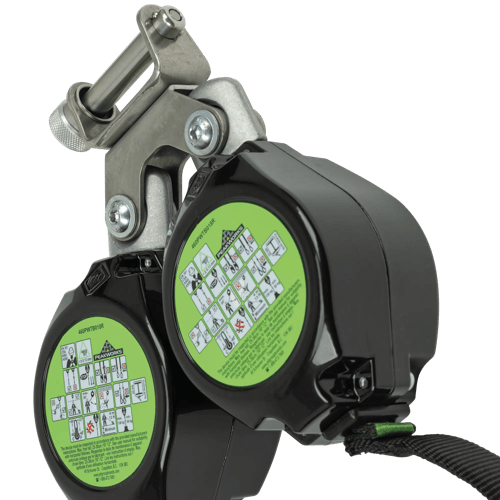

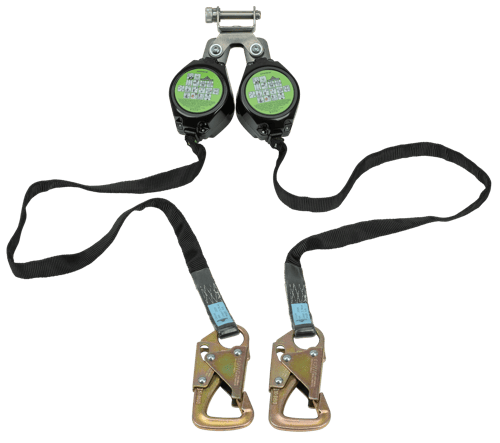

SRD -Twin Leg with Tie-Back - 9'

V845528109TBLE
Brand: PeakWorks
Learn more about PeakWorks

Tie-back SRD class 2 leading edge device that serves as an all-in-one self-retracting lifeline and anchorage connector thus reducing the amount of equipment required on the job site. The device is approved for both vertical and horizontal applications with a setback distance of 12 inches.

  • Manufactured to exacting specifications using lightweight aluminum housings for maximum comfort and durability
  • Anchor point incorporates a heavy duty, durable, and convenient swivel eye

  • Features a sewn-in indicator on the lifeline for maximum safety

  • 310 lbs capacity for 1 worker (combined weight of person, tools, clothing, etc.)

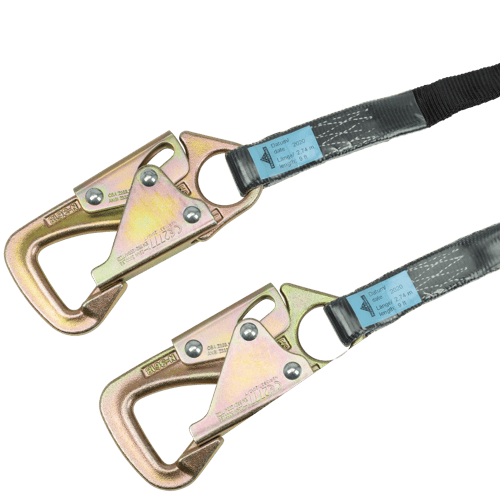

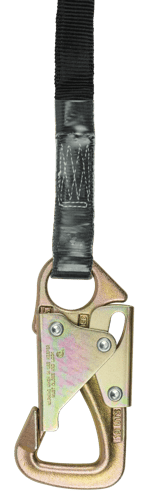

  • Double-locking 5,000 snap hook with 5,000 lbs gate (for tie back applications)

  • Technical Specifications
  • Resources

Anchor Hook MaterialSteel
Anchor Hook TypeTie-Back Snap Hook
Average Arrest Force678
Body Hook TypeConnection Pin
Capacity (kg.)140
Capacity (lb.)310
StandardsANSI Z359.14-2021 Class 2, OSHA
Class TypeClass 2
ColorBlack/Green
Gate Opening (in.)0.83
Gate Opening (mm.)21
Housing MaterialAluminum
Leading EdgeYes
Leg TypeTwin
Length (ft.)9
Length (m.)2.7
Lifeline MaterialDyneema®
Maximum Total Arrest Distance - Non-Leading Edge application (in.)42
Maximum Total Arrest Distance (m)1.07
Minimum Fall Clearance - Non-Leading Edge application (ft.)6
Minimum Fall Clearance - Leading Edge application (ft.)13
Minimum Fall Clearance - Leading Edge applications (m)4
Minimum Fall Clearance - Non-Leading Edge application (m)1.83
Minimum set back distance from edge - Leading Edge application (cm)30
Minimum set back distance from edge - Leading Edge application (in.)12
Rescue and Recover - SRL-RNo
Special FeaturesSewn-in Indicator
Webbing/Cable Thickness (in.).07
Webbing/Cable Thickness (mm.)1.7
Webbing/Cable Width (in.)1
Webbing/Cable Width (mm.)25.4
Country Of OriginGermany
